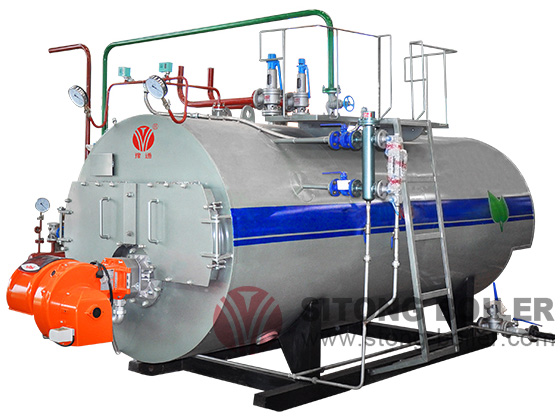

CWNS Horizontal Type Industrial Oil Gas Hot Water Boiler

Rated Power: 0.35MW~14MW
Pressure: 0.7~1.25 MPa
Certificate: ISO9001, CE, BV, SGS
Fuel: Natural gas and other oil gas fuel
Email:  [email protected]

Introduction

The industrial natural gas fired hot water boiler is a kind of safe and high efficiency heating equipment with full automatic control system. Except natural gas, the boiler can also burn other oil or gas fuel, such as city gas, LPG, diesel, heavy oil, etc. The natural gas fired hot water boiler is fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

CWNS Horizontal Type Industrial Oil Gas Hot Water Boiler

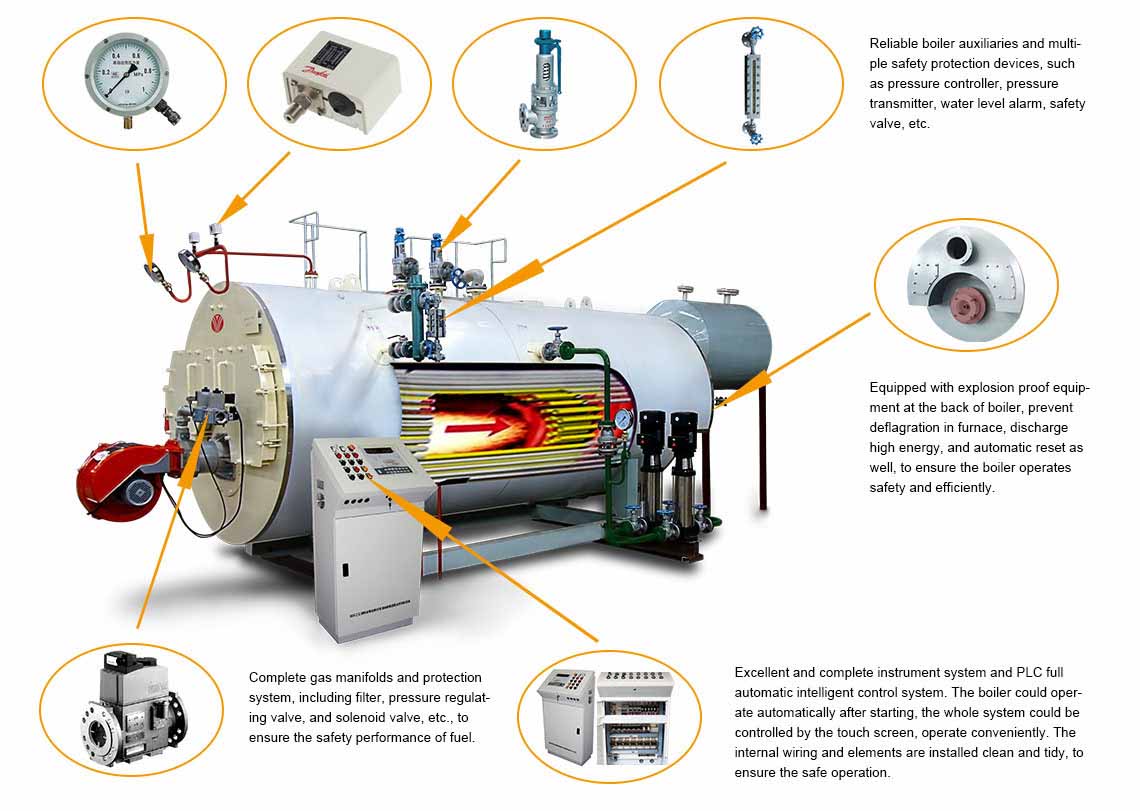

Safety Assurance

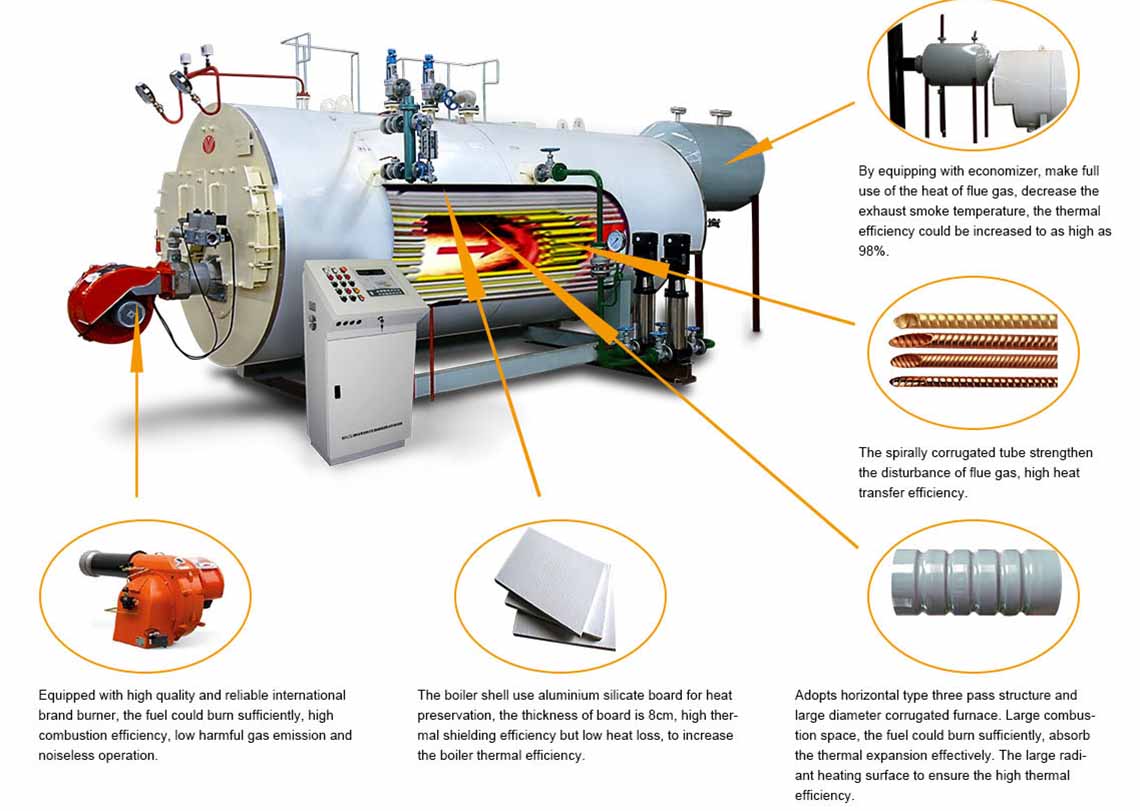

High Efficiency Assurance

Get Scheme Quotation for Free

Name *
Tel *
Email *

Parameter

Model Rated Power (MW) Working Pressure (MPa) Efficiency (%) Fuel consumption Weight (kg) Overall Dimension L×W×H (m)
Light Oil (kg/h) LNG (Nm/H) CG (Nm/H)
WNS 1.05 1.05 0.7 91~93 98.5 119.4 253.7 3400 3.5×1.8×2.05
WNS 1.75 1.75 1.0 91~93 164.2 198.9 422.8 4800 4.5×1.95×2.3
WNS 2.1 2.1 1.0 91~93 197 238.7 507.3 6682 4.8×2×2.5
WNS4.2 4.2 1.0 91~93 394 477.5 1014.6 12400 7.85×2.75×3.46
WNS7 7 1.0 91~93 656.7 795.8 1691 15300 8.6×3.77×4.15
Note: 1. The hot value of LNG: 8500kal/Nm, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/Nm3
2. Parameter is for reference, if any changes, should follow the actual drawing.
3. Sitong boiler could customize the boiler products based on customers’ requirement.
