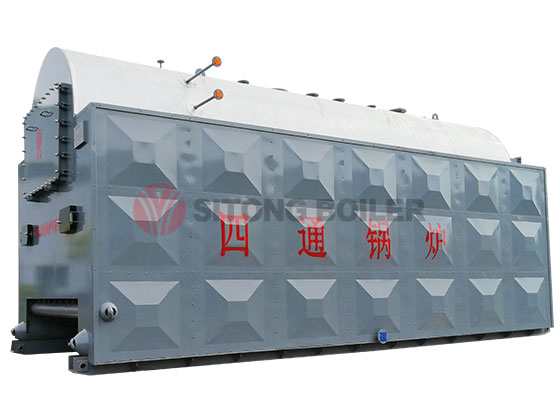

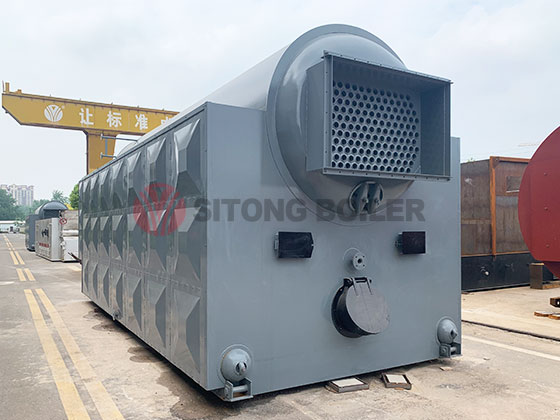

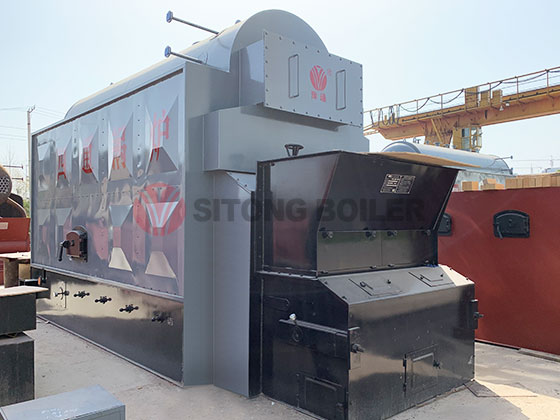

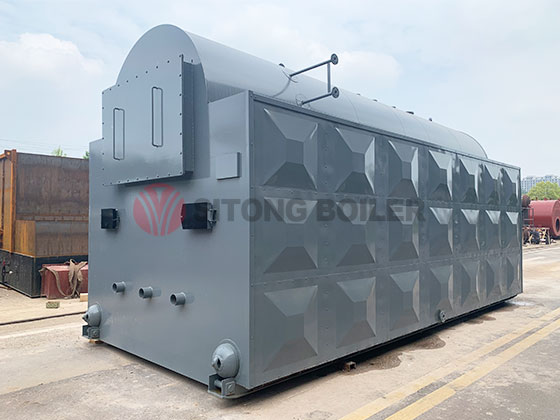

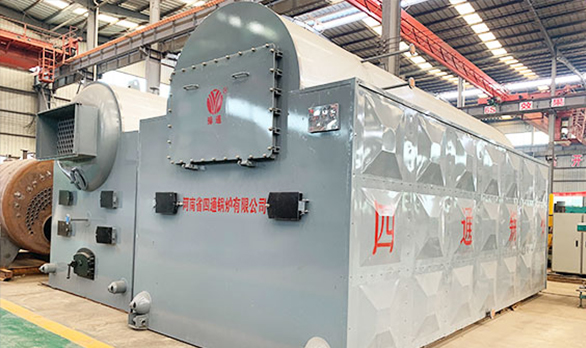

Solid fuel fired chain grate boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure is in reasonable arrangement and high efficiency, also, it adopts unique double secondary air design to improve the high combustion efficiency.
| Model | Steam capacity(t/h) |
Rated pressure (MPa) |
Thermal efficiency (%) |
Available fuel | Fuel consumption (kg/h) |
Overall Dimension L×W×H (m) |
Weight (ton) |
| DZL1-0.7/1.0/1.25-T | 1 | 0.7/1.0/1.25 | 82 | Coal, biomass pellet | ~200 | 5.1×2.2×3 | 17 |
| DZL2-0.7/1.0/1.25-T | 2 | 0.7/1.0/1.25 | 82 | ~400 | 5.5×2.3×3.3 | 23 | |
| DZL4-1.25/1.6-T | 4 | 1.25/1.6 | 82 | ~800 | 6.6×2.6×3.6 | 25 | |
| DZL6-1.25/1.6-T | 6 | 1.25/1.6 | 82 | ~1200 | 8.2×2.9×3.8 | 35 | |
| DZL8-1.25/1.6-T | 8 | 1.25/1.6 | 82 | ~1600 | 8.1×3.1×3.8 | 45 | |
| DZL10-1.25/1.6-T | 10 | 1.25/1.6 | 82 | ~2010 | Up 7.7×3.2×3.6 Down 8.6×3×2.6 | Up 23 Down 28 | |
| Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Our company can design boiler products based on customers’ requirement and different biomass fuels. |
|||||||
Thermal oil heater is an important equipment in the chemical industry, which plays a role in providing heat energy in distillation, hydrogenation, catalysis, gasification and other production processes. A large oil comprehensive processing and sales enter...
A Rice noodles factory in Lebanon is mainly engaged in the production, processing, sales and export of rice products. The main products of the company are rice noodles, glutinous rice flour, rice starch, glutinous rice starch, mixed flour, etc. It is repo...
A winery in Australia is a large enterprise that integrates research and development, production, and sales. In the production processes of wine brewing, such as fermentation and distillation require the use of high-quality steam for heating to ensure the...
Sitong Boiler, founded in 1975 mainly specialized in research and develops industry boiler and pressure vessel. The oil& gas fired boiler, coal fired boiler, as well as horizontal biomass boiler , which are quite popular in textile industry. If you need o...
Industrial boilers are important energy equipment for the development of the seafood deep processing industry, providing necessary heat sources for food cooking, disinfection, frying and other processing processes. Sitong Boiler as a well-known boiler sup...
In the food industry, the sterilization and disinfection process before juice concentration and canning cannot be separated from the high-quality steam provided by industrial boilers. A company in Tanzania is a large local juice production supplier. In re...
A steam boiler is needed to provide thermal energy and appropriate temperature for the reaction to occur for the fact that crude oil will be distilled into different types of oil at different temperature stages. The main production equipments of refinerie...
A company whose head office is a dairy enterprise located in California, the United States, which is committed to producing organic, antibiotic free high-quality milk. The company invested in the construction of a large-scale dairy production base in the...
A textile factory in Cambodia is a small and medium-sized clothing textile processing enterprise. Steam boilers are widely used in textile, sizing, printing and dyeing, weaving and other processes as a member of the textile production line equipment . The...

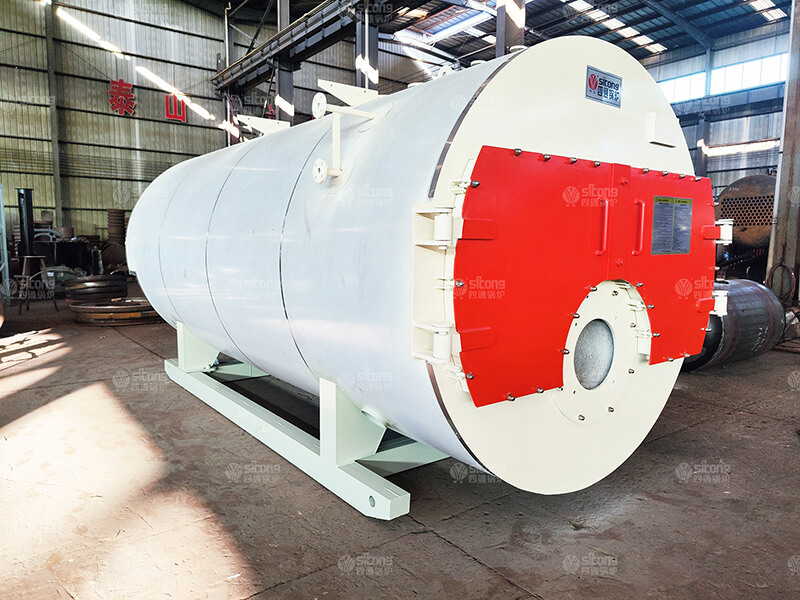

WNS series gas fired wet back boiler is fire tube three pass structure, has high thermal efficiency. This series boiler has the characteristics of compact structure, safe operation, convenient installation, low pollution and low noise, it is widely used f...
