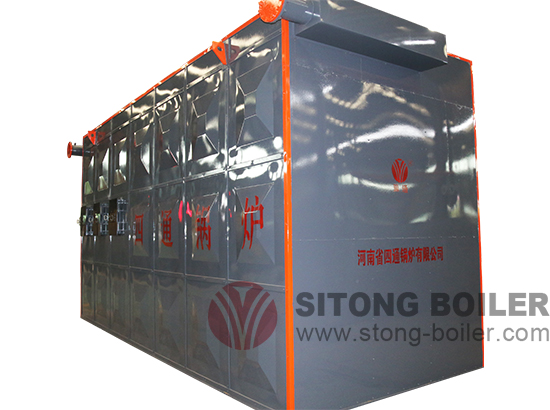

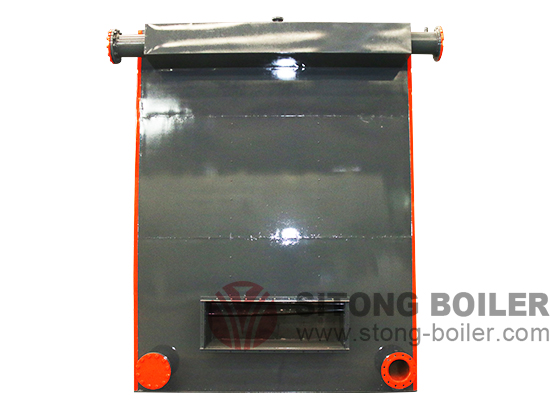

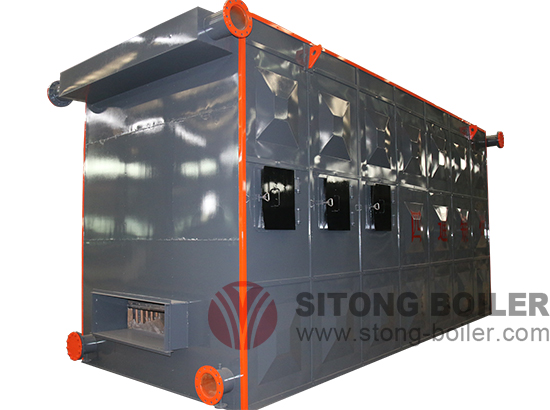

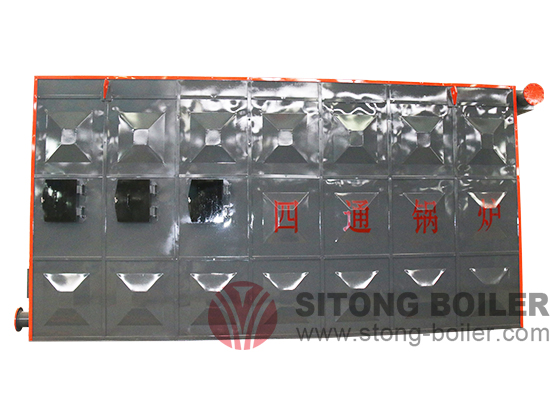

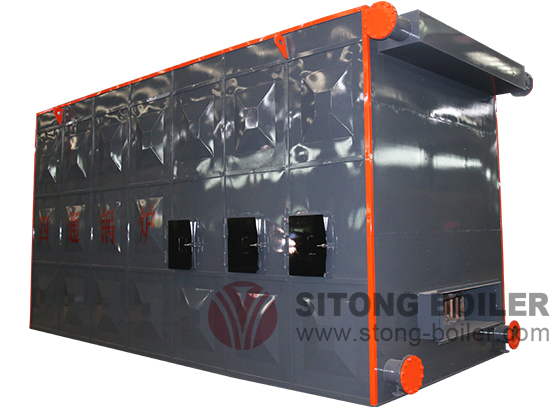

YLW Series Coal/Biomass Fuel Thermal Oil Boiler

  • Rated power  1400~12000kw
  • Working pressure  0.8Mpa
  • Fuel  coal, biomass, wood chips, rice hull, peanut shell, etc
  • Application fields Chemical, Plastic, Textile and Food industry, etc
  • Certification  SGS , BV, CCC, ISO

We're here to help:Easy ways to get the answers you need

get priceSend Email

Introduction:
Coal or biomass fuel thermal oil boiler is a new type of heating equipment, with coal, oil, gas, biomass as fuel and flue gas as heat source, heat conduction oil (such as L - QB, L - QC, L - QD, etc.) as the heat carrier, through the circulating pump to force heat transfer medium to circulate in liquid phrase , and transfer heat to heat user equipment, then return to the heating furnace for re heating high temperature, low pressure, energy-saving equipment. Heating temperature can be as high as 340 ℃, and generally under working pressure of 0.8MPa, because of working in liquid state, safe and reliable.



Application Scopes:

Owing to its characteristics of high heating temperature , low working pressure ,energy saving, thermal oil boiler can be widely used in a variety of industrial heating process. Instead of electricity, steam heating, and it can improve the productivity.
1. Synthetic fiber industry: polymerization, melting, spinning, extension, dry .
2. Textile printing and dyeing industry: hot finalize the design, thermosol dyeing, baking, calender, drying and hot air stenter.
3. Plastic and rubber industry: hot-press, hot-extent, extrusion, vulcanization molding, calendering, injection, mucilage mixer, conveyor dryer.
4. Paper industry: dry, corrugated paper processing, calender, glue roller.
5. Wood industry: plywood, density board, hot pressing molding, wood drying, steaming equipment.
6. Building materials industry: plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, drying equipment, linoleum production line.



Advantages:

1. Strong adaptability of different fuels
separated design for combustion equipment and upper furnace, according to the different nature of the solid fuel, furnace can be design individually .
2. Diversity of grate structure.
The structural grates has fixed and running forms, depending on your fuel nature can be manual or mechanical feeding .
3. Cubic tube combustion chamber.
Boiler combustion chamber is composed of firebrick furnace and cubic tube , with large fuel combustion space, complete combustion, high thermal efficiency.
4. Best coil design.
Radiation section adopts the square coil, the convection section coil is made by serpentine, good performance of radiation coil thermal expansion, low stress, safe and reliable.
5. The optimal process design
Three return flue gas, medium flows through the inside and outside coils, with uniform velocity, safe and stable operation
6. Sufficient output.
Reasonable heating surface layout, large area, good heat transfer effect, high efficiency, stable output, sufficient.
7. Perfect automatic control measures
precision control on outlet oil temperature , multiple protection and control are set on medium temperature, pressure and smoke temperature to ensure safe and reliable operation.
8. Leading technology in automatic control.
Boiler controller adopts Siemens/delixi electric components, reliable in performance. Controller has three forms: normal, LCD display in both Chinese and English menu, touch screen man-machine dialogue remote control. Usually we equip with normal type


Parameter

Model Rated power (KW) Rated working pressure (MPa) Highest working temperature (℃) Fuel Length(mm) Width(mm) Height(mm)
YLW-1400MA 1400 0.8 <350 Ⅱclass Bituminous coal
Biomass pellet
4121 1900 2900
YLW-1800MA 1800 0.8 <350 4400 2400 3000
YLW-2400MA 2400 0.8 <350 5680 2480 3240
YLW-3000MA 3000 0.8 <350 6000 2650 3240
YLW-3500MA 3500 0.8 <350 6400 2770 3470
YLW-4200MA 4200 0.8 <350 6900 2820 3470
YLW-4700MA 4700 0.8 <350 7680 2985 3715
YLW-6000MA 6000 0.8 <350 7900 3200 3475
YLW-7000MA 7000 0.8 <350 8400 3300 3475
YLW-10000MA 10000 0.8 <350 9200 3300 3550
YLW-12000MA 12000 0.8 <350 12600 3820 3630
Note: Parameter is for reference only, if any changes, should follow the actual drawings.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
