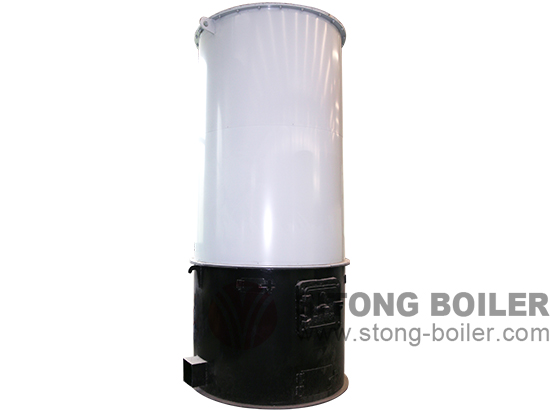

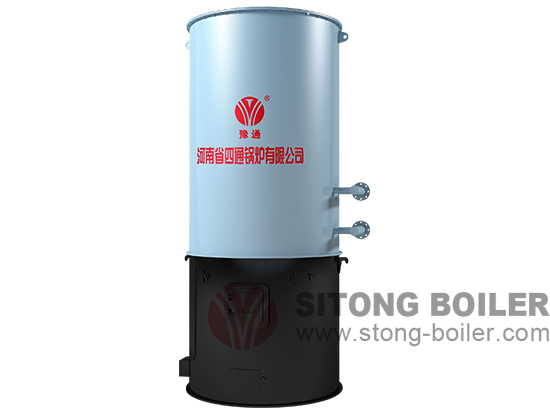

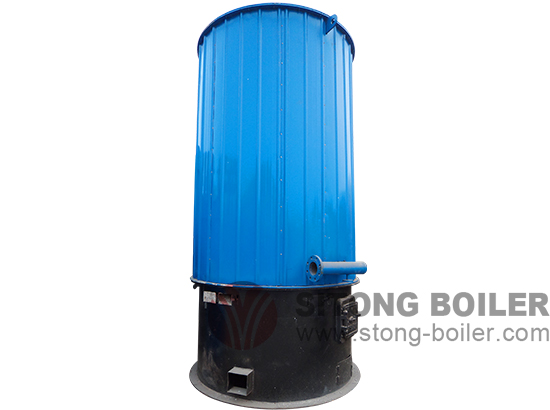

YGL Series Coal/Biomass Fuel Thermal Oil Boiler

  • Rated power  120-1400kw
  • Working pressure  1.1Mpa
  • Fuel  coal, biomass, wood chips, rice hull, peanut shell, etc
  • Application fields Chemical, Plastic, Textile and Food industry, etc
  • Certification  SGS , BV, CCC, ISO

We're here to help:Easy ways to get the answers you need

get priceSend Email

Coal or biomass fuel thermal oil boiler is a new type of heating equipment, with coal, oil, gas, biomass as fuel and flue gas as heat source, heat conduction oil (such as L - QB, L - QC, L - QD, etc.) as the heat carrier, through the circulating pump to force heat transfer medium to circulate in liquid phrase , and transfer heat to heat user equipment, then return to the heating furnace for re heating high temperature, low pressure, energy-saving equipment. Heating temperature can be as high as 340 ℃, and generally under working pressure of 1.1MPa, because of working in liquid state, safe and reliable.

Application Scopes:

Owing to its characteristics of high heating temperature , low working pressure ,energy saving, thermal oil boiler can be widely used in a variety of industrial heating process. Instead of electricity, steam heating, and it can improve the productivity.
1. Petroleum chemical industry: polymerization, melting, condensation, distillation,forced heat preservation.
2. Oleo chemical industry: fatty acid distillation ,fat splitting, distillation, concentration, esterification, vacuum deodorization.
3. Synthetic fiber industry: polymerization, melting, spinning, extension, dry .
4. Textile printing and dyeing industry: hot finalize the design, thermosol dyeing, baking, calender, drying and hot air center.
5. Plastic and rubber industry: hot-press, hot-extent, extrusion, vulcanization molding, calendering, injection, mucilage mixer, conveyor dryer.

Unique Features:

1.strong adaptability of different fuels
separated design for combustion equipment and upper furnace, according to the different nature of the solid fuel, furnace can be design individually .
2.Diversity of grate structure
The structural grates has fixed and running forms, depending on your fuel nature can be manual or mechanical feeding .
3.Large diameter combustion chamber
Boiler combustion chamber is composed of vertical large diameter circular tube, the coil structure with series or parallel, with large fuel combustion space, complete combustion, high thermal efficiency.

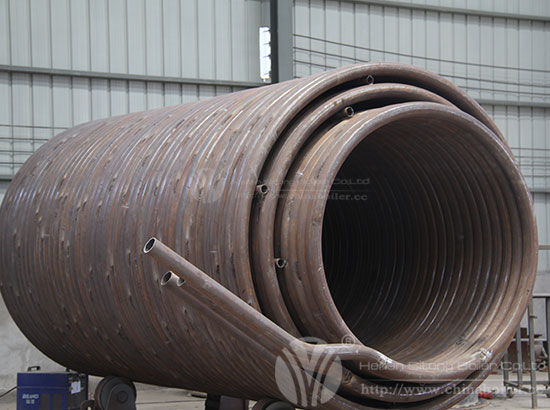

4.Best coil design
Furnace internal and external spiral coil is made of bulls, small diameter steel pipe coil thermal expansion of good performance, low stress, safe and reliable.
5.The optimal process design
Three return flue gas, medium flows through the inside and outside coils, with uniform velocity, safe and stable operation
6. Sufficient output
Reasonable heating surface layout, large area, good heat transfer effect, high efficiency, stable output, sufficient.
7.Perfect automatic control measures
precision control on outlet oil temperature , multiple protection and control are set on medium temperature, pressure and smoke temperature to ensure safe and reliable operation.
8.leading technology in automatic control
Boiler controller adopts Siemens/delixi electric components, reliable in performance. Controller has three forms: normal, LCD display in both Chinese and English menu, touch screen man-machine dialogue remote control. Usually we equip with normal type .


Model Rated power(kw) Thermal efficiency(%) Design pressure(Mpa) Rated working pressure(Mpa) Highest working temperature(℃) Length (mm) Width(mm) Height
YGL-120MA 120 75 1.1 0.8 <350 1220 1140 2550
YGL-240MA 240 75 1.1 0.8 <350 1705 1510 3095
YGL-350MA 350 75 1.1 0.8 <350 1873 1683 3358
YGL-500MA 500 75 1.1 0.8 <350 2076 1900 3660
YGL-700MA 700 75 1.1 0.8 <350 2276 2100 3840
YGL1000MA 1000 75 1.1 0.8 <350 2900 2500 4785
YGL1200MA 1200 75 1.1 0.8 <350 2900 2500 5133
YGL1400MA 1400 75 1.1 0.8 <350 3000 2900 5430
Notes: Parameters are for reference only, if there is a change ,actual drawing will be as criterion.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
