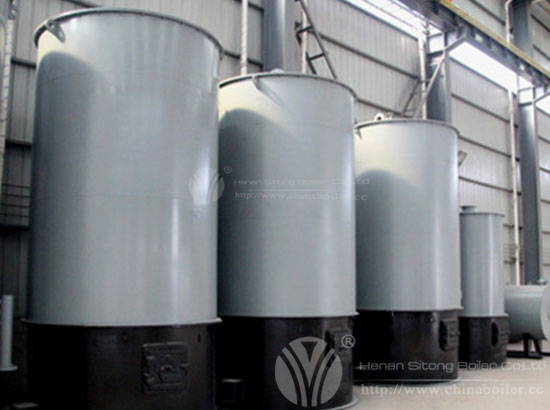

Wood Chip Fuel Thermal Fluid Heater Boiler

  • Rated Power 700-3500kw
  • Working Pressure 1.1Mpa
  • Fuel coal, biomass, wood chips, rice hull, peanut shell, etc
  • Application Fields Chemical, Plastic, Textile and Food industry, etc
  • Max. Temperature 350 ℃
  • Certification SGS , BV, CCC, ISO

We're here to help:Easy ways to get the answers you need

get priceSend Email

Wood chip fuel thermal fluid heater boiler is a new type of heating equipment, with solid fuel (wood chip, biomass pellet, rice husk, etc. ) as fuel and flue gas as heat source, heat conduction oil (such as L - QB, L - QC, L - QD, etc.) as the heat carrier, through the circulating pump to force heat transfer medium to circulate in liquid phrase , and transfer heat to heat user equipment, then return to the heating furnace for re-heating high temperature, low pressure, energy-saving equipment. Heating temperature can be as high as 340 ℃, and generally under working pressure of 1.1MPa, because of working in liquid state, safe and reliable.

Main Features
1. Unique seal for the smoke box
With the overall structure for the lid, the multi-stage labyninth seal, unique sealing process and material, good compressibility, complete reduce its flue gas leakage, which can be reused.
2. Diversity of grate structure.
The structural grates has fixed and running forms, depending on your fuel nature can be manual or mechanical feeding .
3. Multi-function safety and explosion-proof device
The furnace rear is equipped with explosion-proof device, which is connected with the boiler furnace. Once the fuel is bleed and exploded in the furnace, discharging high energy at the moment, it will automatically reset. While it has the function of the endoscopic view of fire and maintenance channel. Using the combustion adjustment in operation, it is easy for furnace inspection and maintenance.
4. Best coil design .
Furnace internal and external spiral coil is made of bulls, small diameter steel pipe coil thermal expansion of good performance, low stress, safe and reliable.
5. Perfect automatic control measures
Precision control on outlet oil temperature , multiple protection and control are set on medium temperature, pressure and smoke temperature to ensure safe and reliable operation.
6. Leading technology in automatic control.
Boiler controller adopts Siemens/delixi electric components, reliable in performance. Controller has three forms: normal, LCD display in both Chinese and English menu, touch screen man-machine dialogue remote control. Usually we equip with normal type .

Owing to its characteristics of high heating temperature , low working pressure ,energy saving, Our wood chip fuel thermal fluid heater boiler can be widely used in a variety of industrial heating process. Instead of electricity, steam heating, and it can improve the productivity.
1. Petroleum chemical industry: polymerization, melting, condensation, distillation,forced heat preservation.
2. Oleo chemical industry: fatty acid distillation ,fat splitting, distillation, concentration, esterification, vacuum deodorization.
3. Synthetic fiber industry: polymerization, melting, spinning, extension, dry .
4. Textile printing and dyeing industry: hot finalize the design, thermosol dyeing, baking, calender, drying and hot air center.
5. Plastic and rubber industry: hot-press, hot-extent, extrusion, vulcanization molding, calendering, injection, mucilage mixer, conveyor dryer.


Model Rated power(kw) Thermal efficiency(%) Design pressure (Mpa) Working pressure(Mpa) Highest working temperature (℃) L(mm) W(mm) H(mm)
YLL-700MA 700 75 1.1 0.8 <350 4830 2500 5500
YLL-1000MA 1000 75 1.1 0.8 <350 4830 2500 5500
YLL-1200MA 1200 75 1.1 0.8 <350 5300 2620 5700
YLL-1400MA 1400 75 1.1 0.8 <350 5650 2650 6000
YLL-1800MA 1800 75 1.1 0.8 <350 5650 2700 6400
YLL-2400MA 2400 75 1.1 0.8 <350 6000 2700 6400
YLL-3000MA 3000 75 1.1 0.8 <350 6000 2800 6500
YLL-3500MA 3500 75 1.1 0.8 <350 6200 2800 6500
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
