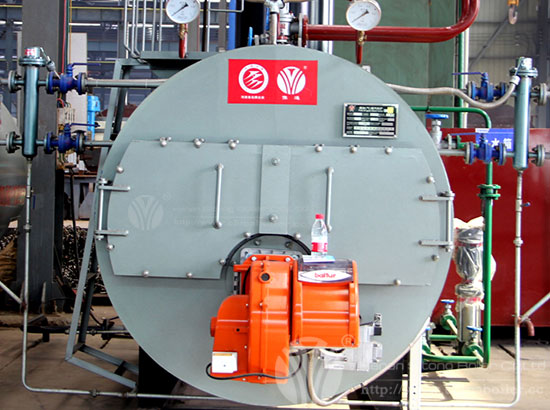

WNS Series Gas Oil Fired Packaged Fire Tube Steam Boiler

  • Capacity/Hot Power 0.5-20t/h
  • Pressure 0.7Mpa-1.6Mpa | 7bar-16bar
  • Fuel Gas, Heavy/Light oil, Diesel oil, Natural gas,diesel
  • Application Textile industries, food industries, rubber industries, paper industries, etc
  • Certificate ISO, GSG, CE, BV

We're here to help:Easy ways to get the answers you need

get priceSend Email

Sitong WNS series gas oil steam boiler is horizontal three-return fired tube steam boiler with wet back structure. The high temperature flue gas injected into the atmosphere after convection heat transfer through the reversal chamber into the first flue tube bundle, and then from the front smoke box with turning 180℃ into the second flue tube bundle.

The structure of Sitong WNS Series steam boiler is compact and reasonable. This boiler is composed of three parts: boiler body, chimneys and piping systems. Boiler body and chimney are manufactured in our factory, and  piping systems are installed when the boiler arrives at the destination, the technical team could help to install the boiler or offer the technical support if necessary. Moreover, the quality of the boiler can be guaranteed.

Application
Packaged fire tube boiler has compact structure and small size, it is usually used for heating and industrial process applications with small steam capacity. According to the characteristics of compact structure, safe operation, convenient installation, low pollution and low noise, the steam boiler could be used for medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing,dyeing and washing, rubber processing, paper products, wood processing, hotel, clothing and leather manufacture etc.

Advantages
1. Sitong patented technology
    100% completely butt welding, minimum stress, and the quality is more reliable.
2. Large diameter corrugated furnace
    Combustion chamber is composed by large diameter full corrugation furnace, large combustion space, sufficient combustion.
3. Enough heating power
    Boiler heating area is >25㎡/ton, it can absorb effective heat sufficient, low exhaust gas temperature,small heat loss,ensure enough heating power and high efficiency.
4. High steam quality
    Large steam space volume and enough height of the net distance between steam water interface and steam outlet.
5. Multi-function safety explosion proof equipment
     Equipped with explosion proof equipment, which can prevent fuel occur deflagration in furnace, discharge high energy. Moreover, it has the fire sight glass and  inspection gallery,
     it is convenien for furnace checking and maintaining.
6. Advanced automatic control
     Boiler controller use Siemens/Delixi electrical element, reliable property. Automatic control on pressure, water temperature, and smoke temperature, etc, ensure safe operation.
7. Convenient to maintenance
     There is a manhole on the top of the boiler,and some special hand hold device at middle and lower position of boiler front and back end, it’s convenient for boiler
     internal installation, inspect and clean.

Parameter

Model Rated evaporation capacity (t/h) Rated steam pressure (Mpa) Rated steam temperature (℃) Water supply temperature (℃) Heating area (m²) Thermal efficiency (%) Fuel consumption
Light oil (Kg/h) Natural gas (Nm³/h)
WNS1-0.7/1.0-Y(Q) 1 0.7/1.0 170/184 20 25 >90 66.5 75
WNS1.5-1.0/1.25-Y(Q) 1.5 1.0/1.25 184/194 20 36 >90 99 112
WNS2-1.0/1.25-Y(Q) 2 1.0/1.25 184/194 20 60 >90.2 133 150
WNS3-1.0/1.25-Y(Q) 3 1.0/1.25 184/194 20 77 >90.5 196 225
WNS4-1.0/1.25-Y(Q) 4 1.0/1.25 184/194 20 113 >91 266 300
WNS5-1.0/1.25-Y(Q) 5 1.0/1.25 184/194 20 127 >91.3 332 375
WNS6-1.25/1.6-Y(Q) 6 1.25/1.6 194/204 20 181 16 399 450
WN8-1.25/1.6-Y(Q) 8 1.25/1.6 194/204 20 190 >91.6 532 600
WNS15-1.25/1.6-Y(Q) 15 1.25/1.6 194/204 20 346 >91.8 997 1125
WNS20-1.25/1.6-Y(Q) 20 1.25/1.6 194/204 20 467 >92 1204 1418
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
