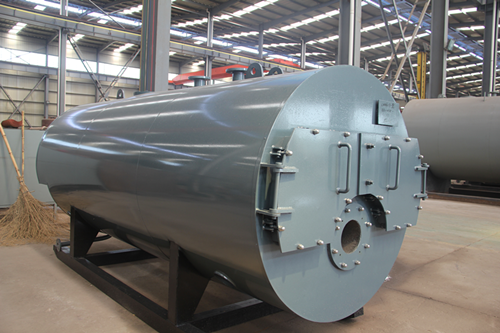

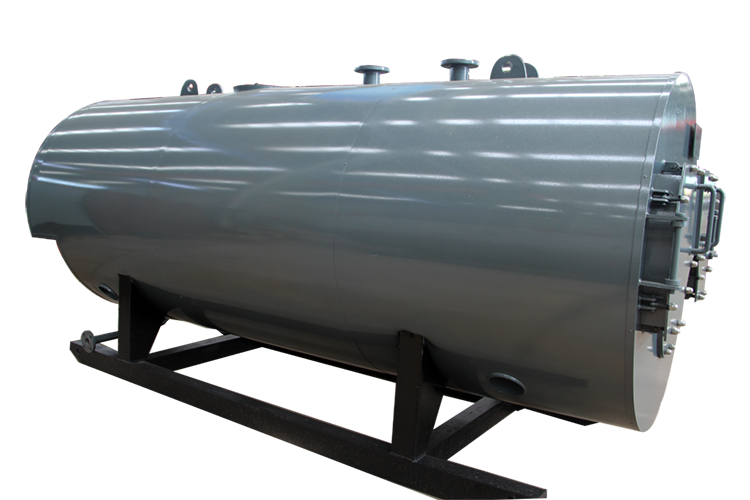

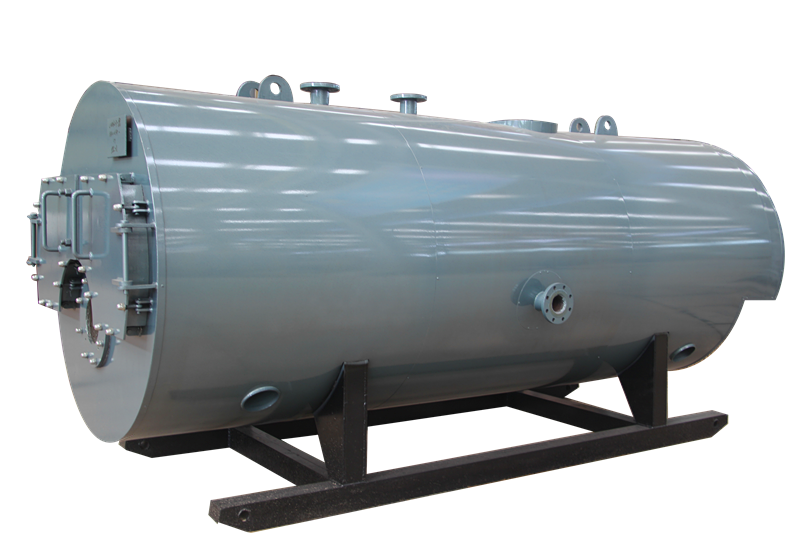

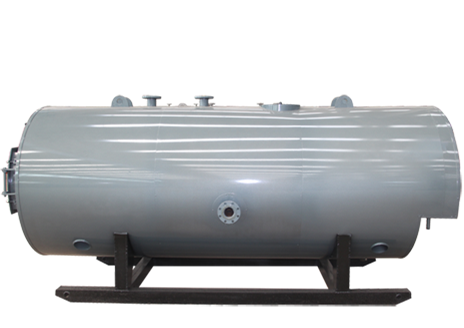

Propane Fired Hot Water Boiler

  • Rated Power 0.35~14 MW
  • Pressure 0.7~1.25 MPa
  • Fuel Propane and other oil gas fuels
  • Application enterprise, hotel, hospital, civil architecture, swimming pool, bath house, etc.
  • Certification ISO9001, CE, BV, SGS

We're here to help:Easy ways to get the answers you need

get priceSend Email

Introduction

The industrial natural gas fired hot water boiler is a kind of safe and high efficiency heating equipment with full automatic control system. The fuel could be propane, city gas, natural gas, diesel oil, heavy oil, etc. The propane gas fired hot water boiler is fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.
As the propane fired hot water boiler has the characteristics of compact structure, safe operation, convenient installation, low pollution and low noise, it is widely used for enterprise, hotel, hospital, civil architecture, swimming pool, bath house, etc.

Products Advantages

1. High Quality Assurance

1) There is a professional design engineer team, before manufacturing, every boiler design drawing have to be approved by boiler and pressure vessel experts of CSBTS ( State Bureau of Quality Technical Supervision ), and then the boiler could be produced only if qualified.
2) To ensure the raw materials quality, all the steel plates are special-used for boiler with the Inspection Certificates. The raw material materials are inspected when entering factory, and only the qualified material could be put in storage and used for production.
3) To ensure the welding quality, there a professional welding team, including more than 30 senior welders. The welding materials are stored under constant temperature and humidity, to ensure the welding material quality.
4) The welding quality will be further examined during boiler manufacturing, by using x-ray detection, ultrasonic flaw detection, magnetic test, or penetration test, etc.
5) To ensure the boiler quality, the leakproofness and strength of pressure parts will be tested. The hydrostatic test is done to make sure there are no water drop or water mist leakage appear on steal wall or welding joint, no water leakage appear at the place of expansion, and no obvious residual deformation and abnormal situation.
6) To ensure no problems before boiler delivery, all the raw materials and boilers are supervised and inspected by the experts of Inspection Institution for Boiler and Pressure Vessel. There are international uality certificates of ISO 9001 and CE, we can also offer the inspection report of SGS, BV, etc., Quality Certificates, Energy audit report, and Energy Efficiency Test Report, etc.

2. Safety Assurance


Except these safety protection devices, the propane fired hot water boiler also adopts full automatic interlock protection program to ensure the boiler safety operation, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

3. High Efficiency Assurance


4. Professional Installation and After-sale Team

1) Professional engineer installation team offer the door to door installation and after sale service. The boilers will operate smoothly and safety, and you will get them without worries.
2) 24 hours hot-line to solve your problems, and offer the professional technical supports and after sale service in time to all over the world.

5. Convenient Maintenance

1) There are manhole, head hole, and special hand hole on the boiler, and the front and back smoke chambers are equipped with movable doors, which are convenient for boiler internal installation, inspection and clean.
2) The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.

Operation Process

The propane fired hot water boiler adopts the advanced internal combustion three pass structure, decrease the temperature of exhaust smoke, improve the heat utilization efficiency and thermal efficiency.
Propane fuel is atomized by burner, and then forms flame and filling in the whole corrugated furnace. The high temperature flue gas flow along with furnace to reversal chamber, then enter into the first tube bundle (the second pass). The flue gas turn 180° in the front smoke chamber and enter into the second tube bundle (the third pass), then passes through back smoke chamber to chimney, and finally exhausted to the atmosphere.

Parameter

Model Rated Power (MW) Working Pressure (MPa) Efficiency (%) Fuel consumption Weight (kg) Overall Dimension L×W×H (m)
Light Oil (kg/h) LNG (Nm3/H) CG (Nm3/H)
WNS 1.05 1.05 0.7 91~93 98.5 119.4 253.7 3400 3.5×1.8×2.05
WNS 1.75 1.75 1.0 91~93 164.2 198.9 422.8 4800 4.5×1.95×2.3
WNS 2.1 2.1 1.0 91~93 197 238.7 507.3 6682 4.8×2×2.5
WNS4.2 4.2 1.0 91~93 394 477.5 1014.6 12400 7.85×2.75×3.46
WNS7 7 1.0 91~93 656.7 795.8 1691 15300 8.6×3.77×4.15
Note: 1. The hot value of LNG: 8500kal/N3, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/N3
2. Parameter is for reference, if any changes, should follow the actual drawing.
3. Sitong Boiler could customize the boiler products based on customers’ requirement.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
