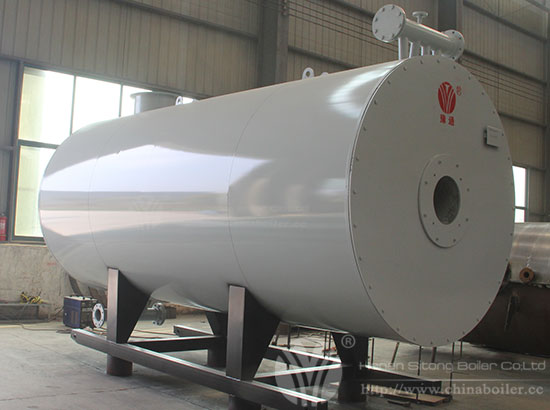

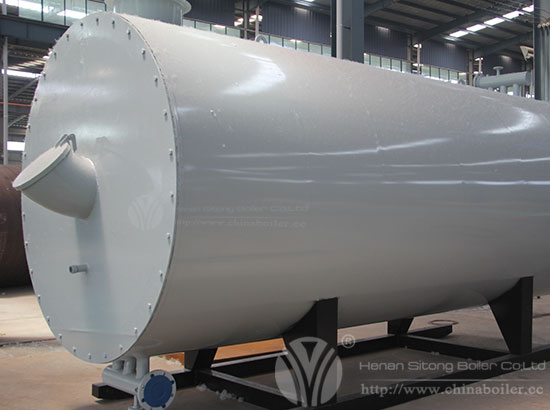

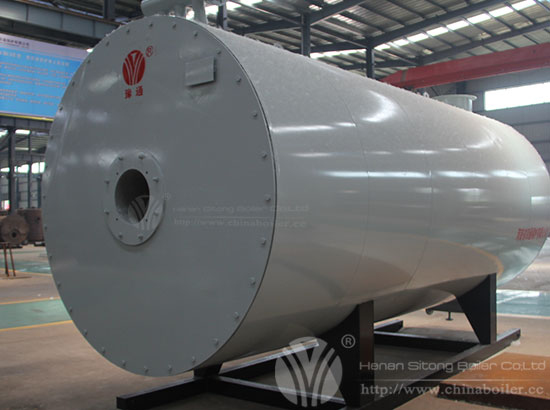

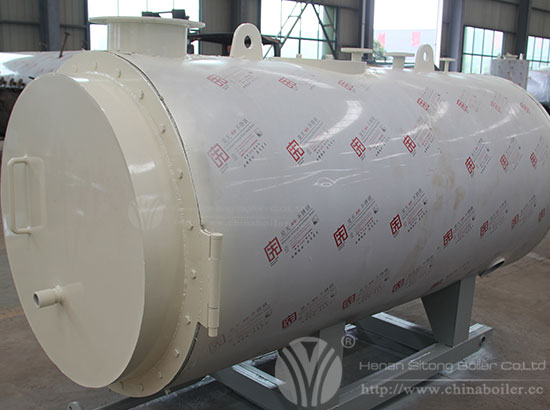

YY(Q)W Low Pressure Boiler

  • Rated power 120~10000kw
  • Working pressure 0.8Mpa
  • Fuel Heavy oil, Light oil, Diesel oil, Natural gas, City gas, etc.
  • Application Textile plant, plastic and rubber, wood industry, building material, machinery industry, food industry, etc.
  • Certification SGS, BV, CE, ISO 9001

We're here to help:Easy ways to get the answers you need

get priceSend Email

Introduction
Generally, low pressure boiler refers to that boiler pressure is lower than 1.5 MPa (15 bar). The temperature in a low pressure boiler will not rise above 120℃.Sitong Boiler is professional on low pressure boiler, and the representative low pressure boiler is thermal oil boiler, which is working under the pressure of 0.8Mpa, while it can get a relative higher temperature (320℃) than the ordinary boiler.



Advantages of Low Pressure Boilers
Low pressure boiler is operate at lower pressure, they do not need to be monitored regularly, just need to be checked when the equipment begins to break down. These series boiler are very safe. While the high pressure boiler operate under a higher pressure (higher than 15 bar), these boilers need to be monitored to ensure safety operation. The operators has to inspect switches, valves, safety devices and leaks on a regular basis. Any malfunctions need to be fixed immediately to prevent further damage.


What is YYQW Low Pressure Thermal Oil Boiler
YY(Q)W low pressure thermal oil boiler is a kind of safe and energy saving boiler with working characteristics of low pressure (1.1 MPa) and high temperature (320℃). The heat carrier is hot oil (heat conduction oil/heat transfer oil), the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. The fuel could be oil and gas.

Parameter


Model Rated thermal power (KW) Working pressure (Mpa) Medium outlet temperature(℃) Thermal efficiency (%) Overall dimension L×W×H(mm) Reference weight (t)
YY(Q)W-120Y(Q) 120 0.8 ≤350 75 1600×1020×1520 1.5
YY(Q)W-1000Y(Q) 1000 0.8 ≤350 85 3300×1670×2486 5
YY(Q)W-2400Y(Q) 2400 0.8 ≤350 85 5080×2200×3180 9.8
YY(Q)W-3000Y(Q) 3000 0.8 ≤350 85 5983×2420×3404 15.5
YY(Q)W-4700Y(Q) 4700 0.8 ≤350 85 7285×2570×3760 21.5
YY(Q)W-6000 Y(Q) 6000 0.8 ≤350 85 7800×3050×3800 25
YY(Q)W-7000 Y(Q) 7000 0.8 ≤350 85 8200×3050×3800 27.5
YY(Q)W-10000 Y(Q) 10000 0.8 ≤350 85 10000×3500×4000 32
Notes:1. Parameter is for reference only, if any changes should follow actual drawings. 2. Available fuel: heavy oil, LNG, city gas, central gas, etc.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
