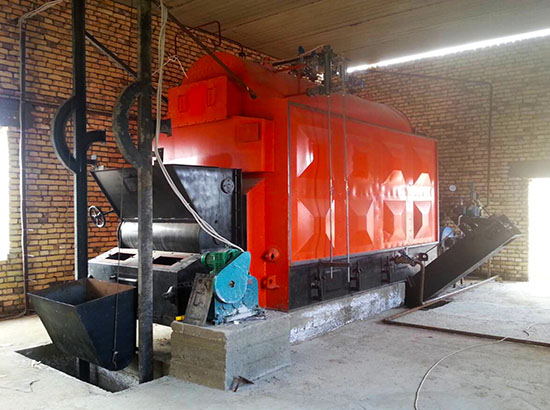

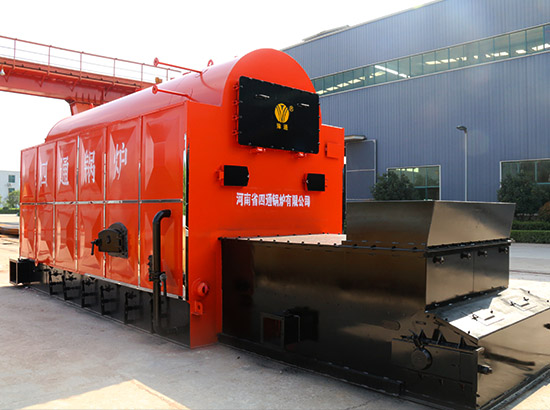

DZL Seires Horizontal Boiler

  • Capacity 0.5~20 t/h
  • Pressure 0.7~3.8MPa
  • Fuel Coal, biomass pellet, wood chips, straw, bagasse, cotton hull, etc.
  • Application Textile mill, chemical industry, food & beverage industry, rice mill, garment factory, school, hotel, and more industries.
  • Certification ISO9001, CE, SGS, BV, etc.

We're here to help:Easy ways to get the answers you need

get priceSend Email

Industrial horizontal type coal/biomass boiler has a large furnace, achieves sufficient combustion and excess output. Sitong horizontal boiler realizes almost zero pollution with the use of special dust collector solution, it is honored as Chinese famous brand. The combustion equipment could be chain grate, moving grate, fixed grate and reciprocal grate, (small scale flaker is available), based on different fuel types and customers requirement, Sitong Boiler could design the specific grate individually. The fuel available for the horizontal boiler could be II class bituminous coal, biomass pellet, wood chips, rice hull, bagasse, straw, peanut shell, mustard stalk, cotton stalk, coconut shell, and waste cloth, etc.

Peculiarities of Sitong Industrial Horizontal Boiler

1. By using spirally corrugated tubes, the boiler has excess output. Generally, the actual output is 10~15% higher than it shown on the nameplate.
2. The temperature rise up quickly with high thermal efficiency (83%).
3. Low original emission concentration of smoke, energy saving and environmental protection.
4. The 100% NDT make sure the boiler life span more than 20 years.
5. Based on customers’ requirement, the combustion equipment can be designed as chain grate, moving grate, fixed grate, and reciprocal grate.
6. Sitong Boiler has got CE certificate of the industrial horizontal boilers, also, we can offer SGS, BV inspection.

Design and Configuration of Horizontal Boiler
Advanced Design and Configuration Function / Advantage
New Dust Collection Achieve almost zero pollution
Smoke and Dust Separation Chamber Decrease the original emission concentration of smoke
Splayed Wall Has the function of dust suppression, protect environment
Small Scale Flaker Type Grate New metallurgy formulate make the grate withstand high temperature more than 1600℃, make sure running without stop even when repair.
Spirally Corrugated Tube Improve heat transfer coefficient, thermal efficiency increase to 83%.
Airfoil Shape Flue Decrease the flue gas temperature in the area of high temperature tube plate, prevent tube plate cracking and swell.
Spark Retaining Wall in Furnace Improve the combustion efficiency.
New Type Furnace Arch Strength combustion, improve the adaptability of different coal types, and improve combustion efficiency
Header Backwater Ejection Avoid water wall tube crack
Secondary Air Design (Biomass Boiler Only) Improve the combustion efficiency and reduce emissions


Model Rated Steam
Rated Steam
Pressure (MPa)
Rated Steam
Coal Consumption
Thermal Efficiency
Overall Dimension of Boiler
Assembled L*W*H (m)
DZL2-0.7/1.0/1.25- AII/T 2 0.7/1.0/1.25 170/184/194 135 82 5.5×2.3×3.3 23
DZL6-1.25/1.6- AII/T 6 1.25/1.6 194/204 810 82 7.5×2.9×3.8 35
DZL8-1.25/1.6- AII/T 8 1.25/1.6 194/204 1150 82 8.1×3.1×3.8 45
DZL10-1.25/1.6- AII/T 10 1.25/1.6 194/204 1350 82 Up 7.7×3.2×3.6 Down 8.6×3×2.6 61
DZL15-1.6/2.5- AII/T 15 1.6/2.5 204/226 2200 83 Up 10×32.4×35.4 Down 12×3.2×3.08 77
DZL20-1.25/1.6- AII/T 20 1.6/2.5 204/226 3160 83 Up 11×3.24×3.54 Down 14×3.2×3.08 78
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data.
2. Available fuel: II class bituminous coal, lower heating value: Q≈21,000 KJ/Kg
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
company strength of Sitong Boiler


Contact us now if you have any question about our company and products[email protected]. Any of your inquiry and suggestion will be highly appreciated. We will keep your information completely private.
