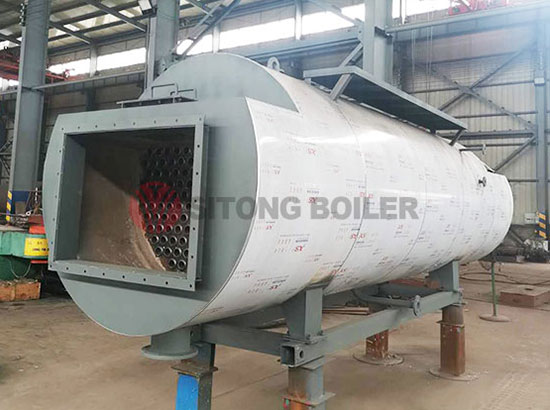

Waste Heat Boiler

Capacity 1~75t/h
Pressure 0.7~5.3MPa
Fuel Heat of exhaust gas or waste liquid during production process
Application Glass industry, coking industry, chemical industry, etc.
Brief intro Waste heat boiler produces steam or hot water by utilizing the heat of exhaust gas or waste liquid during production process, It could change waste into wealth.

We're here to help:Easy ways to get the answers you need

Product description
Parameter
Inquiry

Introduction

Waste heat boilers are the significant energy saving equipment, utilize the heat of flue gases from combustion processes or hot extract air from industrial processes or the turbine to generate hot water or steam for industrial use, power generation or water for life. It does not directly use disposable fuel, so it has the characteristics of energy saving and comprehensive utilization of energy.

Features

1. Energy saving and reduce production cost

The boiler produces steam or hot water by utilizing the heat of exhaust gas or waste liquid during production process, do not need burn fuels, save energy.

2. Compact structure, high thermal efficiency

Adopts acicular heat exchanger, the heat exchange area is 6~8 times of smooth-tube
heat exchanger. All the welding line is automatic welding, and detected by X-rays to
ensure the quality. The volume and weight is decrease, lower cost on boiler
installation.

3. Anti-corrosion

Based on the different waste heat recovery boilers, Sitong boiler takes several measures to avoid the heating area is corroded by flue gas.

4. Environmental protection

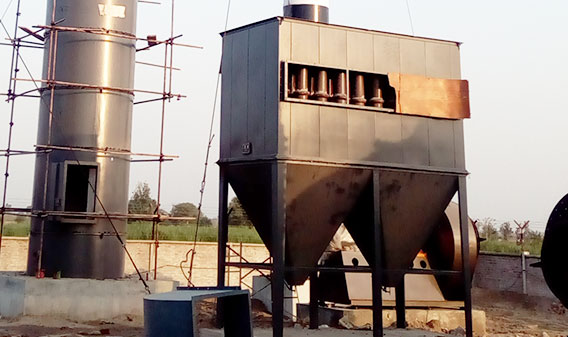

According to the different waste gas, equipped with different dust remover or
desulfurization equipment to meet the requirement of environmental protection.

Parameter

Model	Evaporation capacity (t/h)	Rated Steam Temperature (℃)	Working Pressure (Mpa)	Inlet Gas Capacity (m³/h)	Inlet Gas Temperature (℃)	Exhaust Gas Temperature (℃)
Q11/950-4-2.5/400	4	400	2.5	11000	950	190
Q15/800-5-2.6/401	5	400	2.6	15000	800	180
Q26.8/900-9.8-2.5/400	9.8	400	2.5	26800	900	159
Q25.5/930-10-2.5/400	10	400	2.5	25500	930	148.4
Q38.2/930-15-2.5/400	15	400	2.5	38200	930	150
Q50/1100-25-2.5/400	25	400	2.5	50000	1100	157.1
Q72/860-25-3.82/450	25	450	3.82	72000	860	189
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Here is a part of parameters, please consult for more information. 3. We could design products based on customers’ requirement.

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
company strength of Sitong Boiler

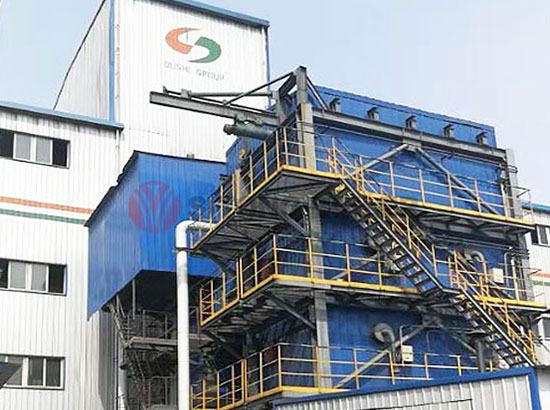

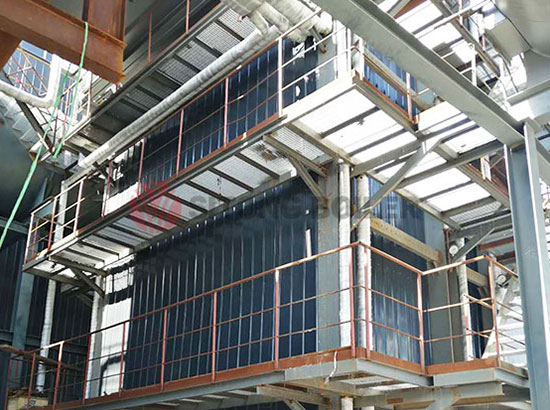

case
