Industrial Electric Steam Boiler

  • Steam Capacity 0.1t/h-6t/h
  • Pressure 0.4/0.7 MPa
  • Efficiency 99%
  • Fuel Electric
  • Application Food Processing, hospital, paper plant, food & beverage, diaries, schools, chemical industry, etc.
  • Certification ISO, SGS, CE

We're here to help:Easy ways to get the answers you need

get priceSend Email

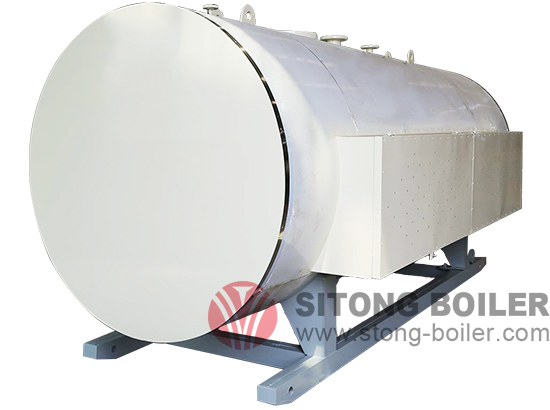

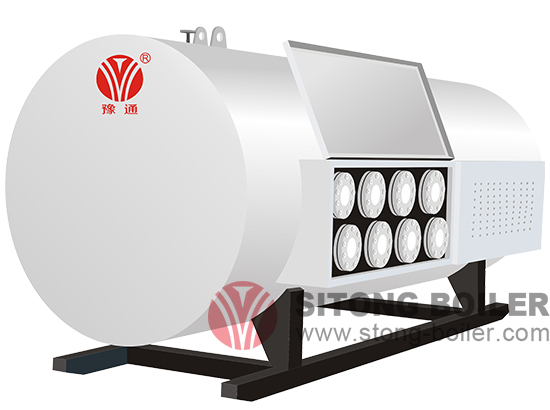

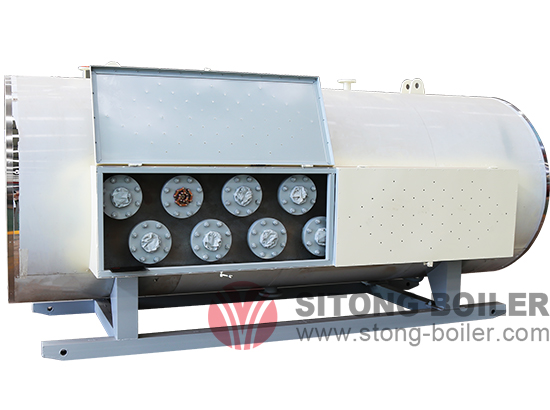

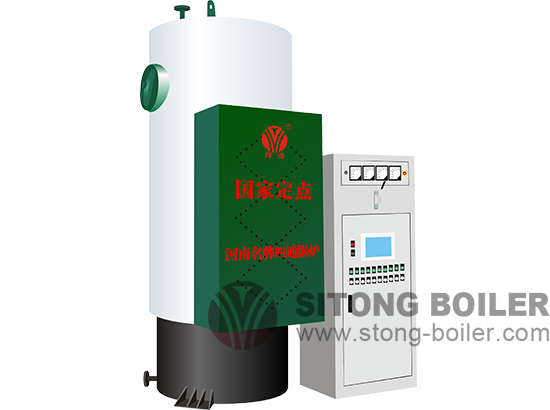

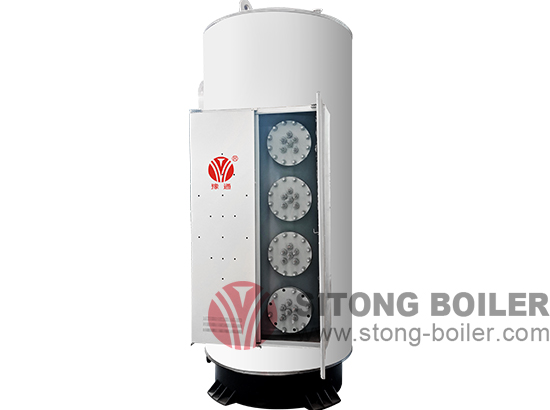

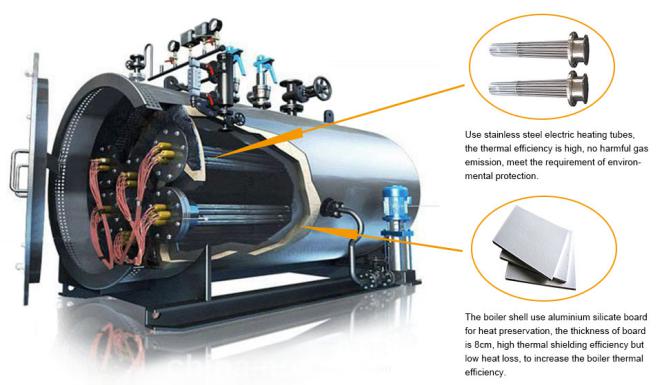

The thermal efficiency of industrial electric boiler reaches as high as 99%, and there is no NOx released to the air. The electric boiler with steam capacity lower than 1ton is designed as vertical structure, and higher than 1 ton is designed as horizontal type to offer sufficient steam output. The electrical control cabinet is separate from boiler body, which will not affect the boiler’s working life because of the aging of the electrical elements. The electric steam boiler adopts high quality electrical heated tube, work for about 20000 hours. It uses stainless steel electric heating tubes has high compression strength, the working life is 5~10 times longer than the common tubes.
The industrial electric steam boiler is ideal for heating, textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, food & beverage, diaries, schools, chemical industry and more applications.

Products Advantages
1. High Quality Assurance
1) There is a professional design engineer team, before manufacturing, every boiler design drawing have to be approved by boiler and pressure vessel experts of CSBTS ( State Bureau of Quality Technical Supervision ), and then the boiler could be produced only if qualified.
2) To ensure the raw materials quality, all the steel plates are special-used for boiler with the Inspection Certificates. The raw material materials are inspected when entering factory, and only the qualified material could be put in storage and used for production.
3) To ensure the welding quality, there a professional welding team, including more than 30 senior welders. The welding materials are stored under constant temperature and humidity, to ensure the welding material quality.

4) The welding quality will be further examined during boiler manufacturing, by using x-ray detection, ultrasonic flaw detection, magnetic test, or penetration test, etc.

5) To ensure the boiler quality, the leakproofness and strength of pressure parts will be tested. The hydrostatic test is done to make sure there are no water drop or water mist leakage appear on steal wall or welding joint, no water leakage appear at the place of expansion, and no obvious residual deformation and abnormal situation.
6) To ensure no problems before boiler delivery, all the raw materials and boilers are supervised and inspected by the experts of Inspection Institution for Boiler and Pressure Vessel. There are international uality certificates of ISO 9001 and CE, we can also offer the inspection report of SGS, BV, etc., Quality Certificates, Energy audit report, and Energy Efficiency Test Report, etc.

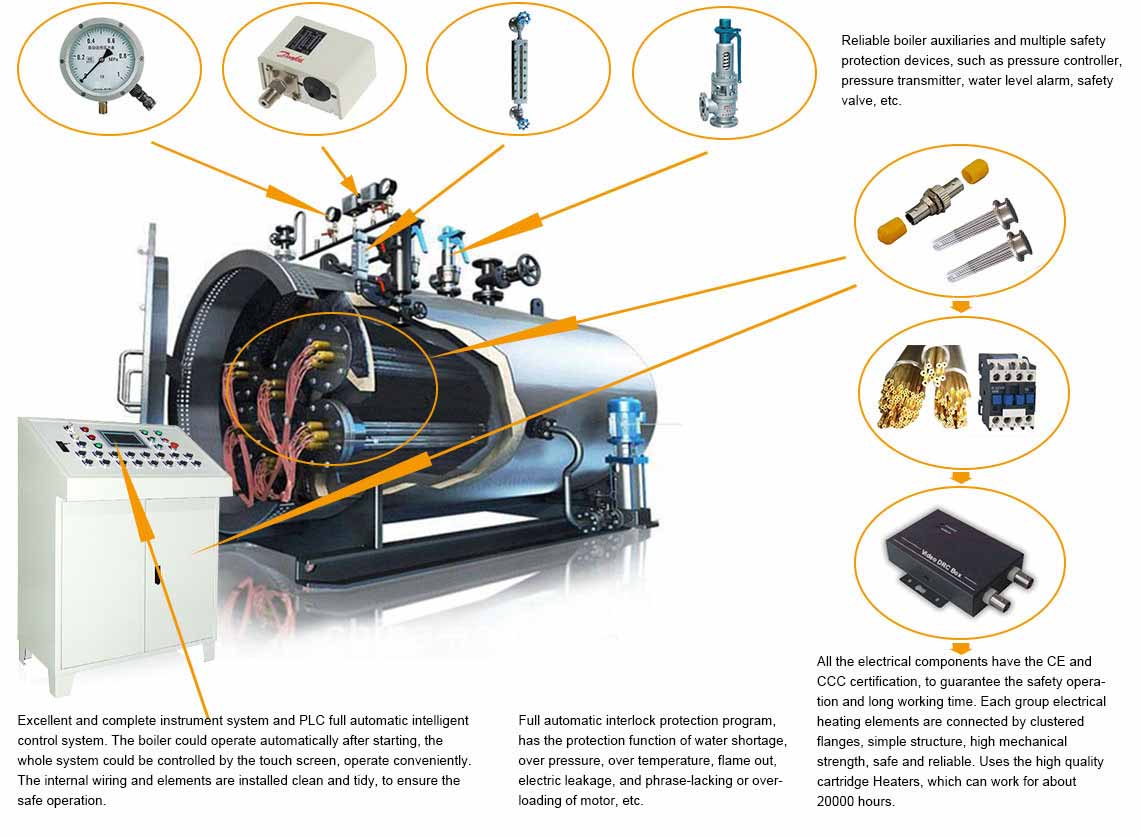

2. Safety Assurance

3. High Efficiency Assurance

4. Professional Installation and After-sale Team
1) Professional engineer installation team offer the door to door installation and after sale service. The boilers will operate smoothly and safety,and you will get them without worries.
2) 24 hours hot-line to solve your problems, and offer the professional technical supports and after sale service in time to all over the world.


Model Rated Evaporation Capacity(t/h) Rated Working Pressure(MPa) Rated steam Temperature(C) Thermal Efficiency(%) Overall Dimension (mm) Reference Weight(kg)
LDR0.1-0.4-D 0.1 0.4 151 99 1100×850×2600 615
LDR0.2-0.4-D 0.2 0.4 151 99 1200×960×2500 657
LDR0.3-0.4-D 0.3 0.4 151 99 1350×1120×2360 671
LDR0.4-0.4-D 0.4 0.4 151 99 1350×1120×2650 678
LDR0.5-0.4/0.7-D 0.5 0.4/0.7 151/170 99 1700×1200×2720 689
LDR0.7-0.4/0.7-D 0.7 0.4/0.7 151/170 99 2650×1850×1330 825
WDR1-0.7-D 1 0.7 170 99 2620×1360×1630 1179
WDR1.5-0.7-D 1.5 0.7 170 99 2840×1560×1830 1312
WDR2-0.7-D 2 0.7 170 99 3640×1760×2030 1450
Note: Parameter is for reference only, if any changes should follow actual drawings.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
