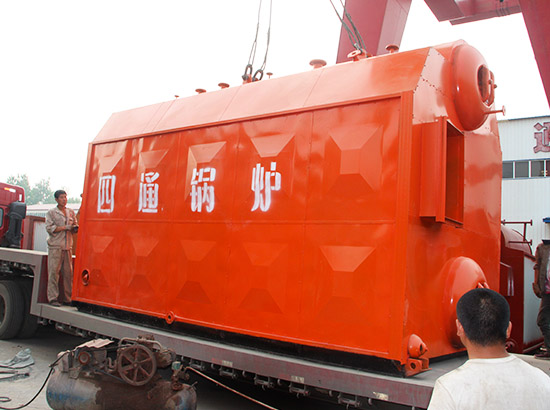

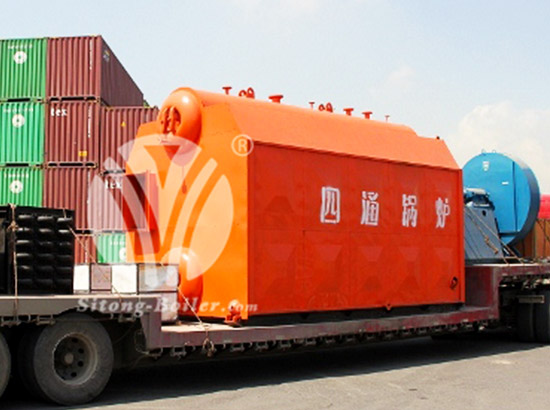

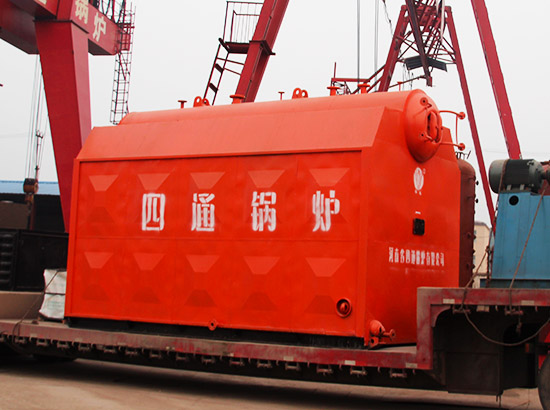

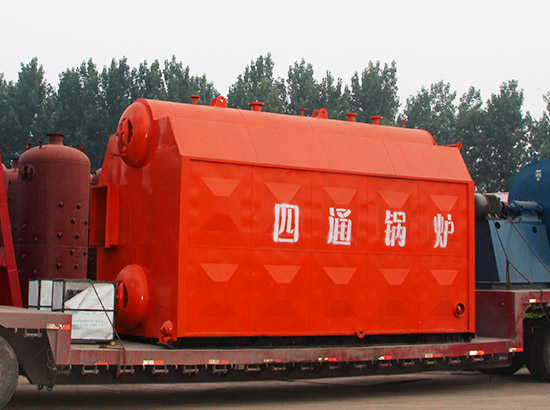

SZL Series Coal Fired Hot Water Boiler

  • capacity(MW) 1.4-14MW
  • Steam Pressure 0.7Mpa-1Mpa
  • Fuel Coal/wood pellet/rice husk/ peat pellet/biomass
  • Application Heating Supply, Thermal Power Plant
  • Certification CE, SGS, BV, ISO9001, CCC, etc.

We're here to help:Easy ways to get the answers you need

get priceSend Email

Introduction:
SZL series water tube  hot water boiler is designed by our engineer that learn the advanced technology at home and abroad and experience, which is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler .This series boiler has reached the international advanced level at technology, performance, environment protection.

Application:
This series hot water boiler is widely used in industry and life which need steam, the relevant capacity hot water boiler is widely used in industry and heating for civil use. It is also ideal for heating, textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, etc.

Technical Advantages:
1. Furnace arch adopts advanced design, forming obvious inverse “α” flue gas flow, which make the boiler have strong adaptability.
2. Boiler’s back and forth arches are water-cooling “warm arch” structure, which can protect furnace arch.
3. Boiler adopts bilateral inlet air and independent plenum structure, can adjust blast capacity and wind pressure of each plenum, to ensure the burning effect.
4. Grate back-shaft adopts roller bearing structure, to avoid sliding bearing over-burning.
5. The bottom road rail of grate adopts light rail, which improve the operation’s reliability.
6. The length of grate is 500-1000mm longer than domestic, which enhance the thermal efficiency.
7. Boiler design adopts light furnace wall structure, which makes the absorbed heating capacity reduce and the boiler starts and stops quickly.

Parameter

Model Rated supply heat
capacity (t/h / MW)
Working
pressure (MPa)
Rated steam temperature/
outlet temperature (℃)
Feed water temperature/
Return water temperature (℃)
Overall dimension part for transportation
L*W*H(mm)
SZL1.4-0.7/95/70-AII 2/1.4 0.7 95 20/70 5500×2350×3650
SZL2.8-0.7/95/70-AII 4/2.8 0.7 95 20/70 7730×2360×3520
SZL4.2-1.0/95/70-AII 6/4.2 1 95 20/70 Up  6150×2840×3540 down 7275×2852×2580
SZL5.6-1.0/95/70-AII 8/5.6 1 95 20/70 up 6971×2933×3540 down 8056×2945×2580
SZL7-1.0/95/70-AII 10/7.0 1 95 20/70 up 7855×3240×3540 down 9025×3200×2580
SZL10.5-1.0/115/70-AII 15/10.5 1 115 20/70 Up 10000×3240×3540 down 12000×3200×3080
SZL14-1.0/115/70-AII 20/14 1 115 20/70 up 11000×3240×3540 down 14000×3200×3080
Note: Parameter is for reference only, if any changes should follow the factory technical data.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
