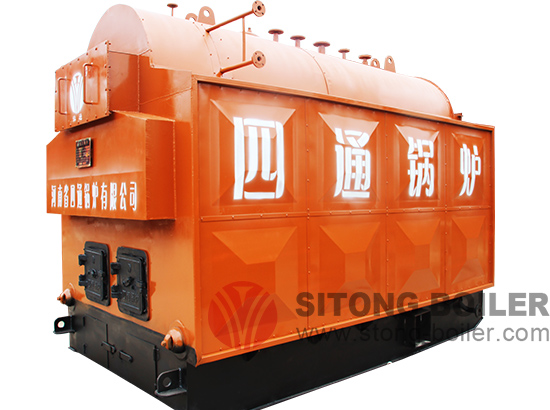

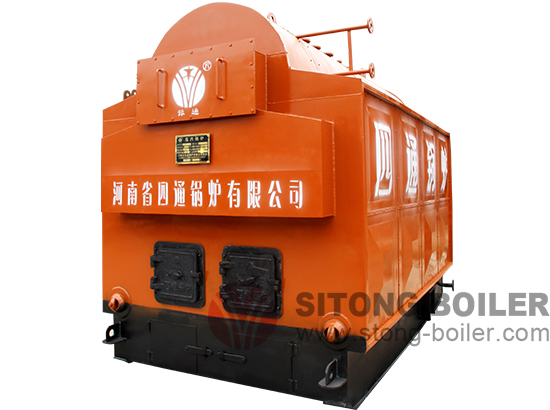

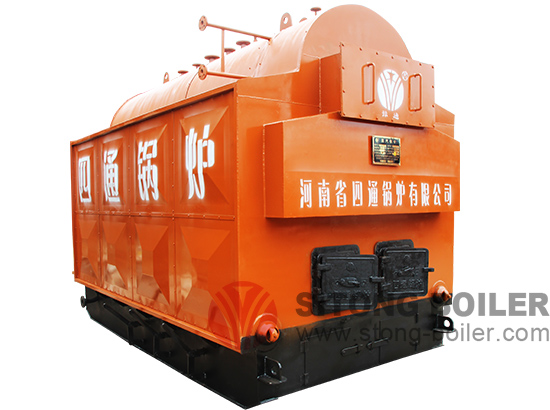

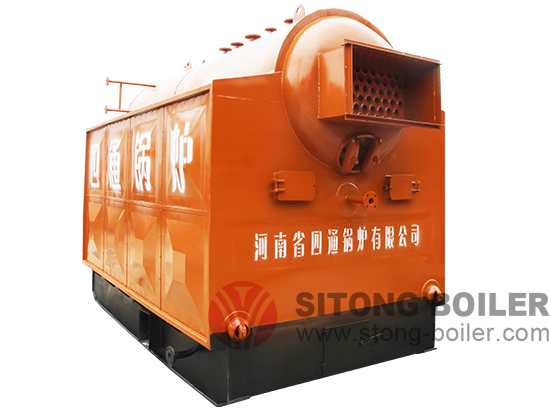

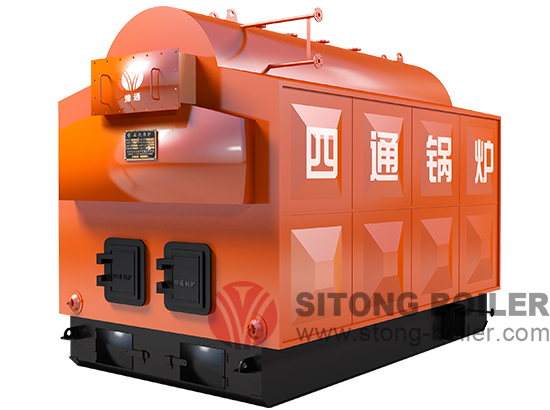

DZH Series Coal Fired Steam Boiler

  • Steam capacity 0.5t/h-4t/h
  • Steam Pressure 0.7Mpa-3.8Mpa
  • Fuel Coal/wood pellet/rice husk/ peat pellet/biomass
  • Application Power Plant,Central Heating,City Heating
  • Certification ISO,CE,CCC,ASTM

We're here to help:Easy ways to get the answers you need

get priceSend Email

New type DZH series coal fired steam boiler is single drum parallel water and fire tube steam boiler, the combustion equipment is moving grate. The boiler mainframe in general configuration adopts the form of drum overhead and bilateral symmetry of water wall tube and header. The drum is installed and welded by boiler barrel and front and back tube plates. It has high combustion efficiency due to the spark retaining wall located in the interior of furnace.

This series of boiler adopts latest scientific research achievements,such as arched tube plate, thread smokestacks etc, solves the pot shell type boiler tube plate cracking, pan cone lower speed bulge, water-cooled wall tube explosion, low thermal efficiency, the output of coal quality issues such as insufficient, adaptability.

This DZH series coal fired steam boiler is ideal for heating, textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, food & beverage, diaries, schools, chemical industry and more applications.

Technical Advantages:
1. It uses arched tube plate and thread smokestacks constituted into the drum, reduces the stress.The fire tube inside of tube plate is single return instead of two-
    return, solves the problem of tube plate cracking.
2. The ascension pipes arranged at the bottom of drum,this make the sludge not easy to deposit,prevent the drum bottom swelling.
3. It adopts efficient heat transfer threaded pipe,strengthened heat transfer,then heating-up and pressure boost -up quickly,thus increasing the thermal efficiency.
4. Compact structure, saving the boiler foundation cost.
5. Stable running,easy to adjust,strong steam output.
6. The smoke tube is not easy to be ash deposition,due to the smoke can be disturbance and clean itself.
7. Both wing wall and outlet widow inside of the furnace have the function of dust suppression, thus ensuring the soot discharge scratch the index stipulated by the
    State Environmental Protection.


Model Rated Steam Capacity (t/h) Rated Steam Pressure (MPa) Rated Steam Temperature (℃) Rated Feed-water Temperature (℃) Fuel Consumption(kg/h) Overall Dimension  L*W*H(mm) Thermal Efficiency (%)
DZH 0.5-0.7/1.0-AII 0.5 0.7/1.0 170/184 20 76 3228×2000×2656 80
DZH 1-0.7/1.0/1.25- AII 1 0.7/1.0/1.25 170/184/194 20 150 4108×2200×2915
DZH 2-0.7/1.0/1.25- AII 2 0.7/1.0/1.25 170/184/194/204 20 301 4700×2300×3270
DZH 4-1.25/1.6- AII 4 1.25/1.6 194/204 20 602 5600×2550×3563
Note: Parameter is for reference only, if any changes should follow the factory technical data.
Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
