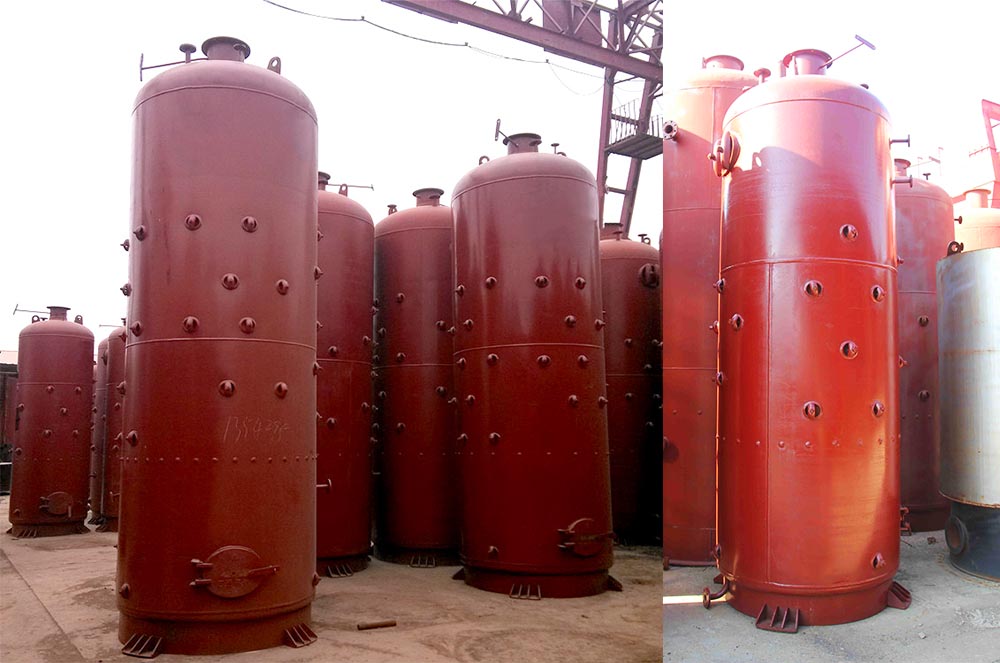

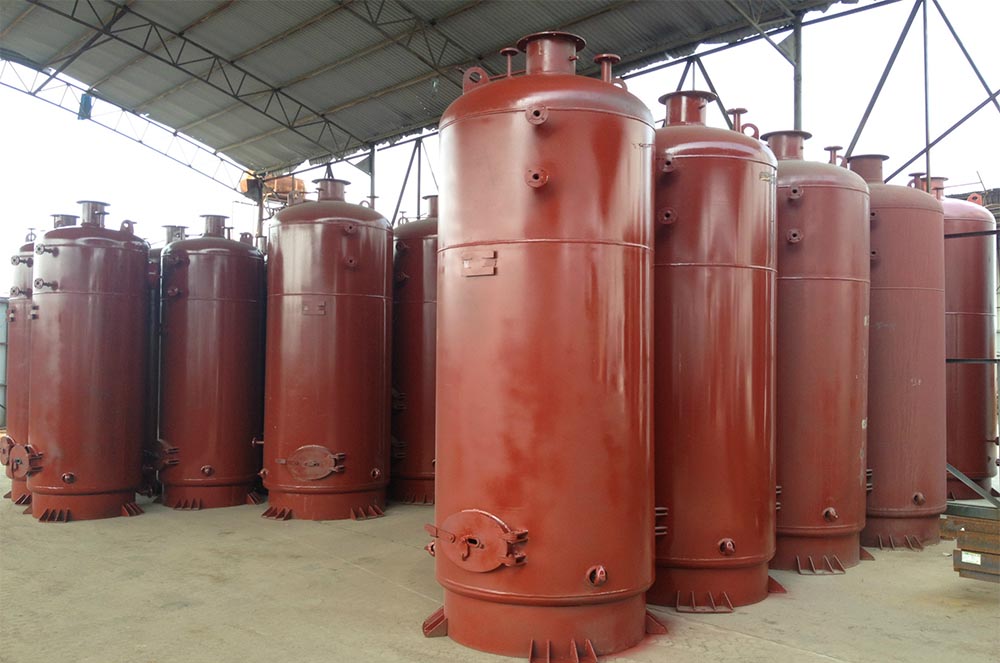

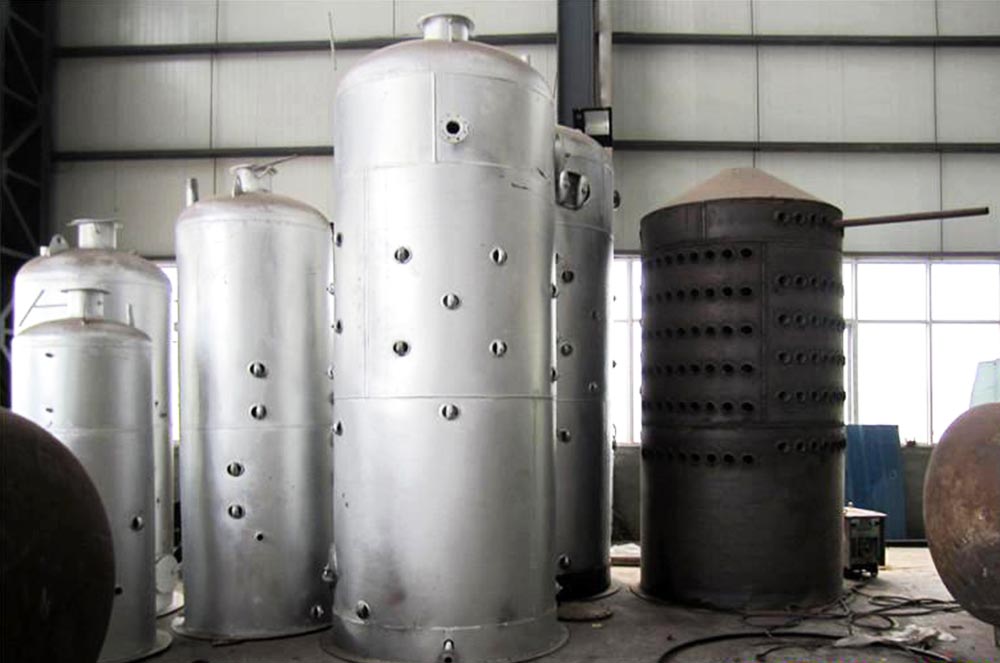

LSH(G) Vertical Type Biomass Steam Boiler

Introduction
This series boiler uses the general combustion technique. The biomass fuel is feed by workers manually. After burning in the fire grate, the exhaust gas pass through the horizontal water tube, and the small carbon block and dust in the exhaust gas fall on the fire grate and re-burn. Then the exhaust gas is released to the air through the chimney.

Advantages
1. Compact structure, easy to install, small footprint, small investment.
2. Multi-pass and multi-return, the dust can be removed naturally without ID fan, save energy.
3. Horizontal pipes increase the radiation heating area.
4. High thermal efficiency ,exhaust gas passes through the forced convection tube bundle.
5. Small capacity boiler, fit for the small industrial.

Parameter

Model	Rated Evaporation （t/h）	Working Pressure (Mpa)	Steam Temperature (°C)	Heating Transfer Area (m2)	Grate Area (m2)	Overall Size (m)
LSG0.1-0.4	0.1	0.4	151	4	0.2	0.7×2.6
LSG0.2-0.4	0.2	0.4	151	7.0	0.3	0.9×2.9
LSH0.3-0.4	0.3	0.4	151	9.0	0.5	1.0×3.4
LSH0.5-0.4	0.5	0.4	151	18.3	0.78	1.2×3.7
LSH1-0.4	1	0.4	151	38.6	1.54	1.6×4.8
LSH0.3-0.7	0.3	0.7	170	10.6	0.5	1.0×3.6
LSH0.5-0.7	0.5	0.7	170	20.5	0.78	1.2×4.0
LSH1-0.7	1	0.7	170	46.3	1.54	1.6×4.9

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.

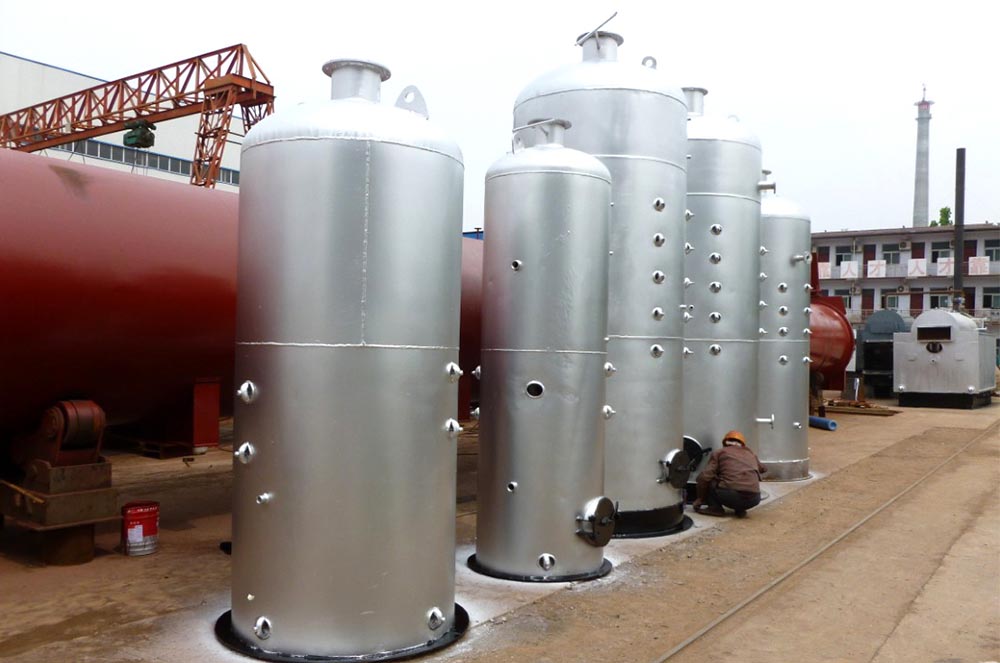

case
